Cover R8100 for ALUGEAR chainrings (12-sp. Ultegra cranks)

The original AERO design ALUGEAR

TECHNICAL SPECIFICATIONS

• Intended to use: ALUGEAR 1speed and 2speed chainrings for Shimano 12 speed R8100 cranks

• Weights: Cover – 17g; Bolts (M8 11,5mm) – 8g

• Bolt circle diameter: 110 mm Shimano Asymmetric

• Attachment: 4-arm spider

• Material: Aluminum 7075-T6

• Made: CNC milling

• Surface coating: Anodizing

COMPATIBILITY

• For ALUGEAR 1speed and 2speed chainrings with 110 mm Asymmetrical 4-arms Shimano cranks: Ultegra R8100

• For the ALL NEW CRANK SPIDER Used for Sram Cranksets

• Note: the Cover is not compatible with cranks Shimano R8100 series with built-in original Power Meter

INFORMATION

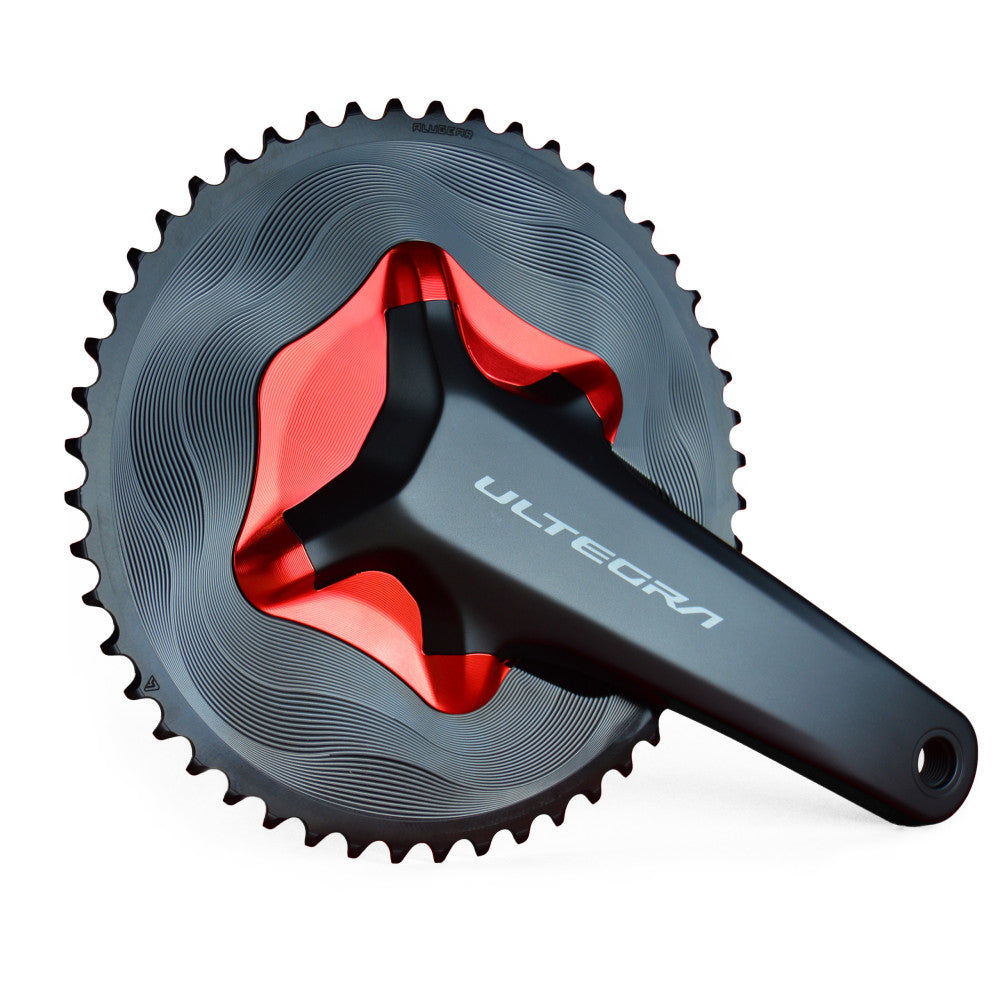

This Cover is designed to give your ALUGEAR chainrings the best appearance with your Ultegra R8100 cranks. This Cover is of the original AERO design and intended specifically for the ALUGEAR chainrings 1speed and 2speed for Shimano R8100 cranks

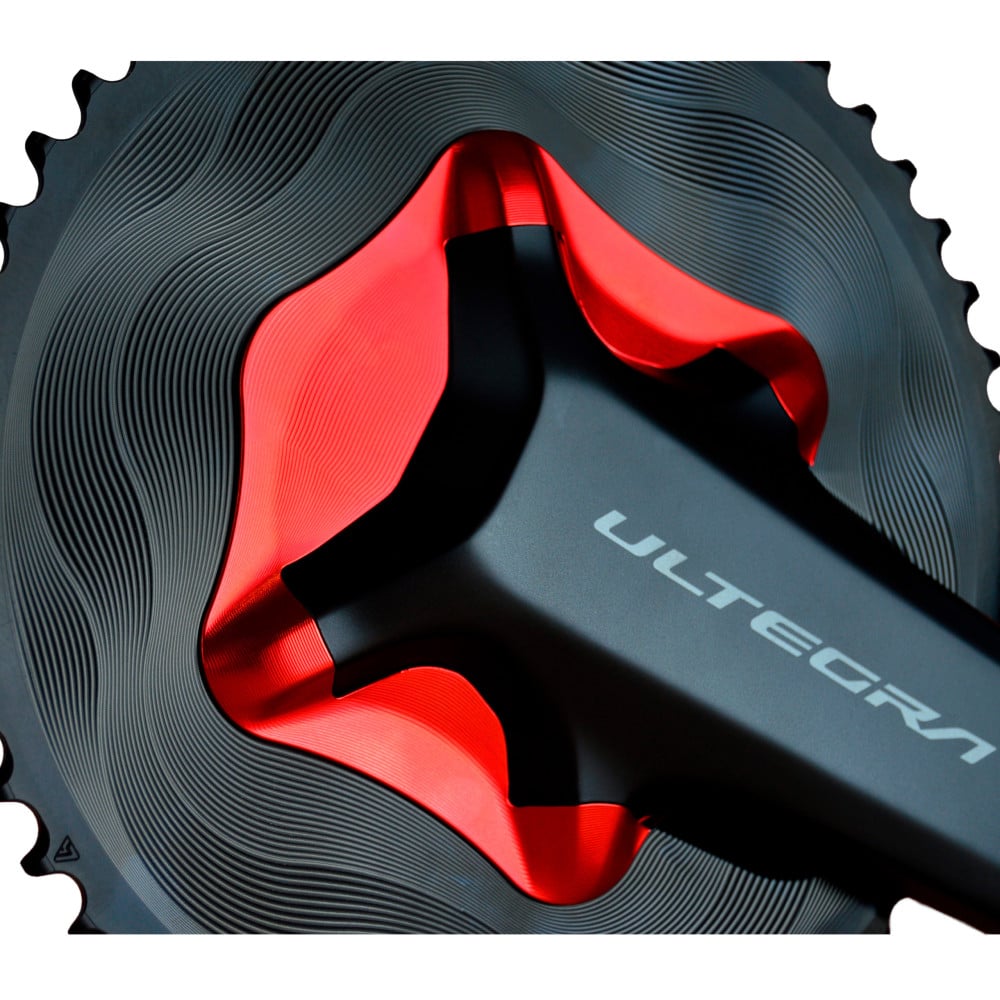

The original Aero design ALUGEAR hides the joint between the chainring and crank arm. The Cover can be easily removed and placed back again when it is needed

RECOMMENDATIONS

• For the best appearance of ALUGEAR chainrings with your Ultegra R8100 cranks

• The Aero Cover for ALUGEAR 1 and 2 speed chainrings are designed to fit the entire range of Shimano Ultegra R8100 cranks

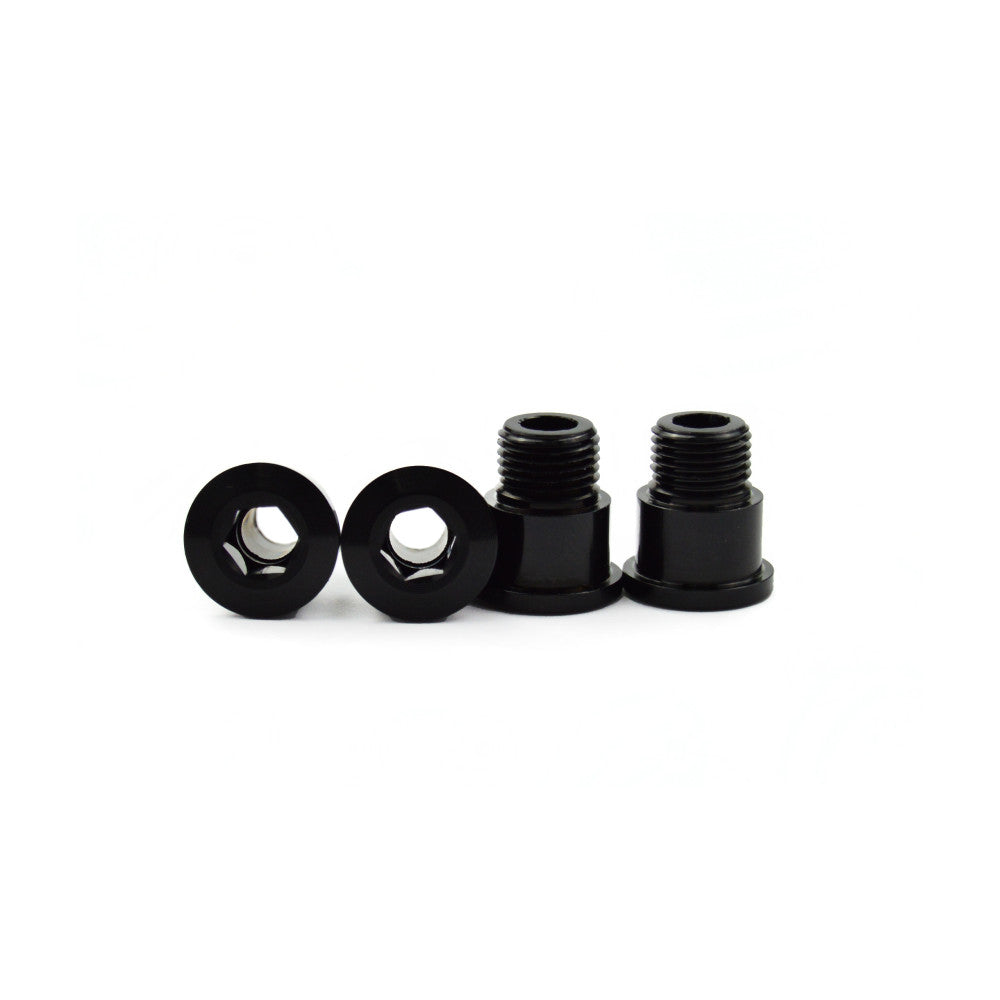

• Please use only original ALUGEAR Bolts during installation. Using other bolts may cause damage to the Сover

• Tool holder: 5 mm hexagon socket maximum permissible torque: 10 Nm

INSTALLATION INSTRUCTIONS

• The 1X chainring installation scheme with Cover

• The 2X chainrings installation scheme with Cover

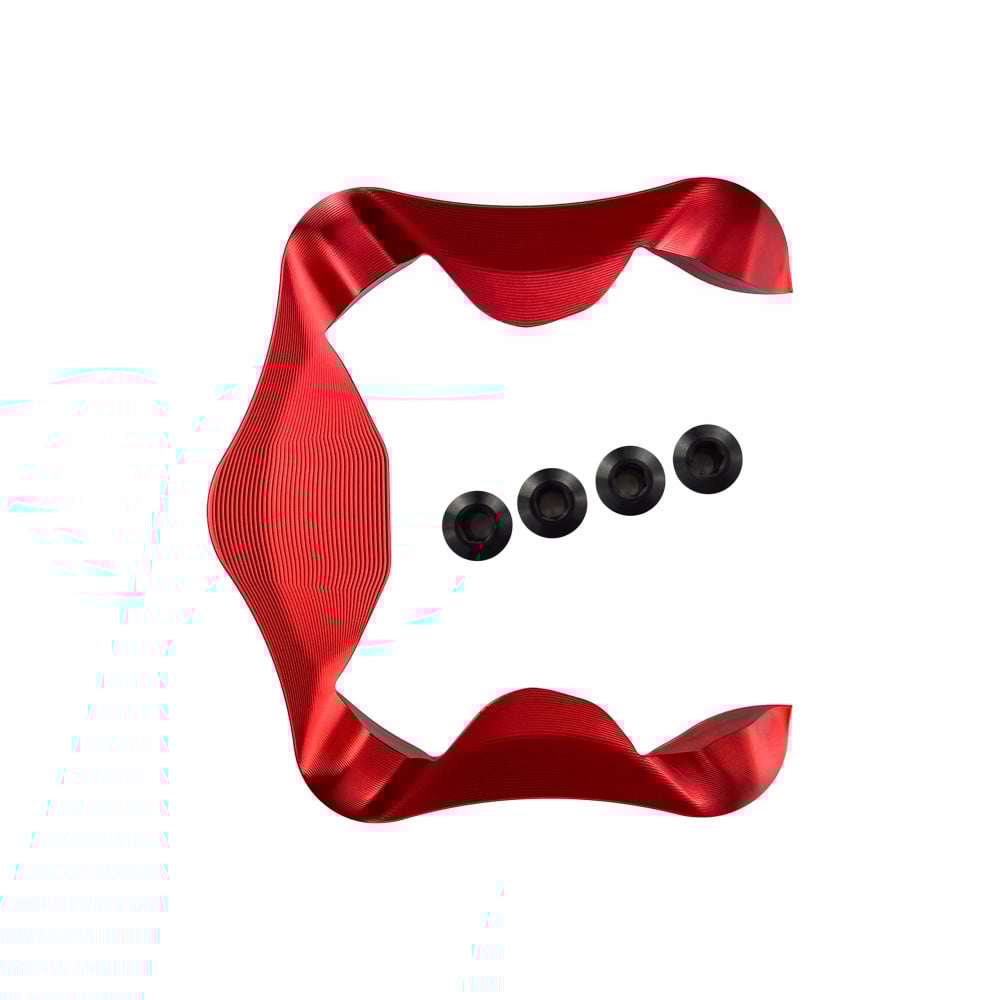

Delivery includes: 1 x Cover AERO, 4 x bolts M8 with spacers
